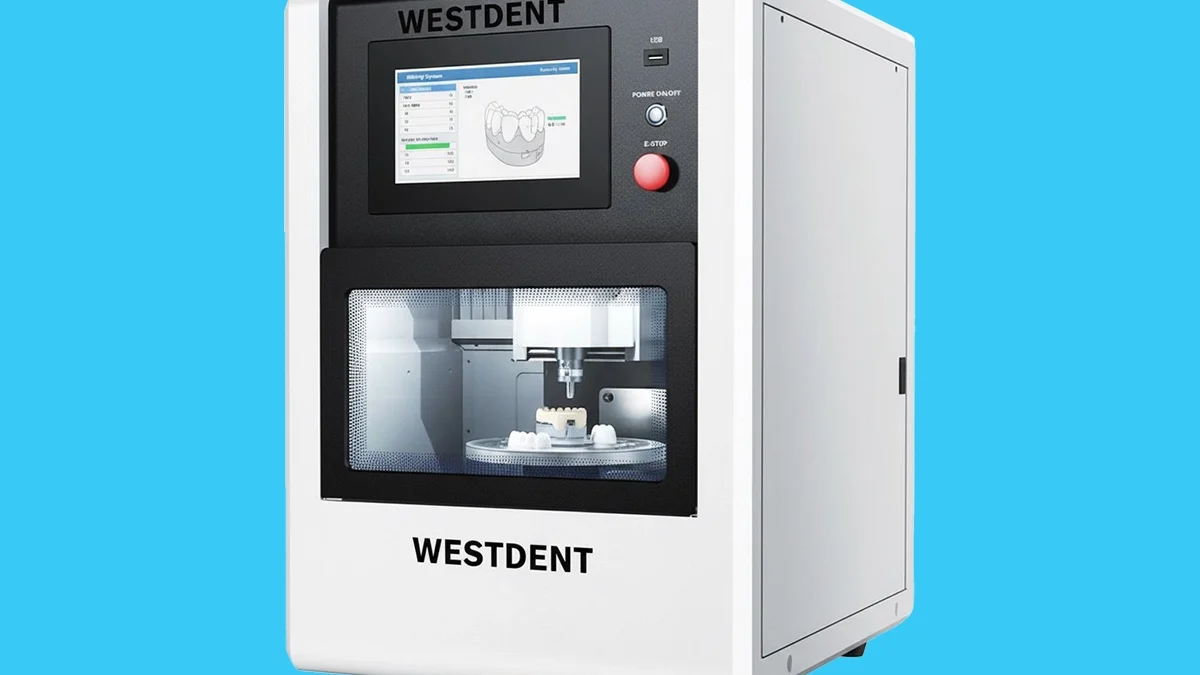

Understanding Dental Milling Machines: Types, Applications, and Innovations

Introduction

In the modern era of digital dentistry, precision, speed, and efficiency are key. One of the most important technologies enabling this transformation is the dental milling machine — an advanced device used to carve dental restorations such as crowns, bridges, and implant abutments from solid blocks of materials like zirconia, PMMA, wax, or metal.

At West Dent, we believe in empowering dental professionals with high-quality digital tools, including CAD/CAM milling systems, that bring accuracy and reliability to every stage of restorative dentistry.

1-What Is a Dental Milling Machine?

A dental milling machine is a computer-controlled device that shapes dental prosthetics based on a digital design created in CAD/CAM software.
The machine uses high-speed rotary tools to cut or grind material blocks — a process known as subtractive manufacturing.

These restorations can include:

• Crowns and bridges
• Veneers and inlays/onlays
• Implant abutments and bars
• Temporary restorations (e.g., PMMA crowns)
• Full dentures or frameworks

2-Types of Dental Milling Machines

Dental milling machines are categorized based on several criteria — axis movement, application type, and material compatibility.

A-Based on Axis Movement

The number of axes determines the machine’s ability to mill complex geometries.

1. 3-Axis Milling Machines
   • Move in X, Y, and Z directions.
   • Suitable for simple restorations like copings, inlays, and single-unit crowns.
   • Cost-effective but limited in contouring undercuts or complex angles.
2. 4-Axis Milling Machines
   • Add a rotational axis, allowing the material block to rotate.
   • Enables the production of more detailed restorations and bridges.
   • Commonly used in small to medium-size dental labs.
3. 5-Axis Milling Machines
   • The most advanced type, with two additional rotation and tilt movements.
   • Capable of milling intricate shapes, implant bars, and full-arch restorations.
   • Ensures exceptional precision and surface smoothness.
   • Preferred in high-end laboratories and digital dental centers.

B-Based on Application

1. Wet Milling Machines
   • Use water or coolant during milling.
   • Ideal for materials like glass ceramics, titanium, and cobalt-chromium.
   • Reduces heat and prevents microcracks in fragile materials.
   • Common for permanent restorations and implant abutments.
2. Dry Milling Machines
   • Designed for materials like zirconia, PMMA, and wax.
   • Faster and cleaner operation with less maintenance.
   • Typically used for milling pre-sintered zirconia blocks.
3. Hybrid (Wet/Dry) Milling Machines
   • Combine both technologies in a single system.
   • Offer maximum flexibility for clinics and laboratories.
   • Suitable for users who need to switch between materials frequently.

C-Based on Usage Environment

1. Chairside Milling Machines
   • Compact systems integrated with intraoral scanners and CAD software.
   • Allow same-day restorations (e.g., CEREC systems).
   • Ideal for clinics that offer digital, single-visit treatments.
2. Laboratory Milling Machines
   • Larger, more powerful machines for mass production.
   • Handle multiple units simultaneously with superior precision.
   • Commonly used in dental laboratories or centralized milling centers.

3-Common Materials Used in Dental Milling

Different materials require specific milling settings and tools.
Common options include:

4-Key Features to Consider When Choosing a Milling Machine

When selecting a dental milling unit, focus on these key factors:

• Number of Axes: Determines versatility and precision.
• Spindle Speed and Power: Affects milling speed and finish quality.
• Material Compatibility: Choose based on your primary applications (zirconia, PMMA, etc.).
• Tool Management: Automatic tool changers improve workflow efficiency.
• Connectivity: Integration with CAD/CAM and scanner systems.
• Maintenance and Support: Reliable technical service ensures long-term performance.

5-Advantages of Using Dental Milling Machines

• Exceptional Accuracy: Precision down to microns ensures perfect fit and minimal adjustment.
• Faster Turnaround: Digital design and milling reduce production time.
• Consistency: Automated milling guarantees uniform quality across restorations.
• Material Efficiency: Subtractive manufacturing minimizes waste.
• Customization: Each restoration is designed specifically for the patient’s anatomy.

6-The Future of Dental Milling Technology

The latest innovations in milling machines include:

• AI-assisted milling paths for faster, smarter operations.
• Automatic calibration systems for consistent precision.
• Compact, chairside hybrid units enabling full digital workflows in clinics.
• Integration with 3D printing for hybrid digital manufacturing.

As digital dentistry continues to evolve, the combination of intraoral scanning, CAD/CAM design, and advanced milling is redefining restorative and implant prosthetics.

Conclusion

Dental milling machines have revolutionized the way restorations are fabricated — offering unmatched precision, flexibility, and speed. Whether milling PMMA for temporary restorations or zirconia for high-strength crowns, these machines form the heart of every digital dental workflow.

At West Dent, we provide advanced milling solutions, CAD/CAM systems, and digital dentistry equipment designed to help clinics and laboratories deliver consistent, aesthetic, and long-lasting results for their patients.
